High Performance Sprayable Greases For Lubrication of Open Gears

Applications

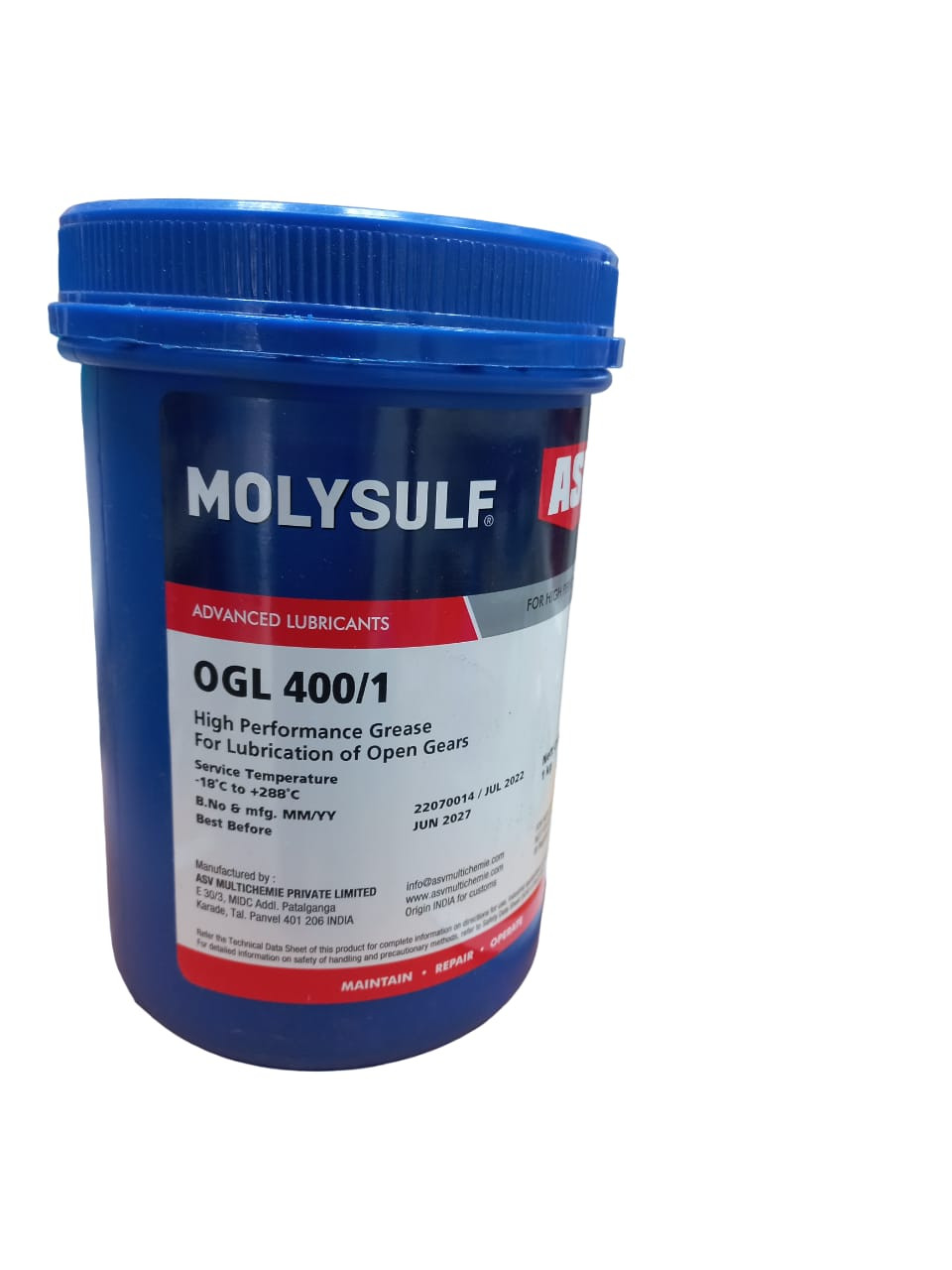

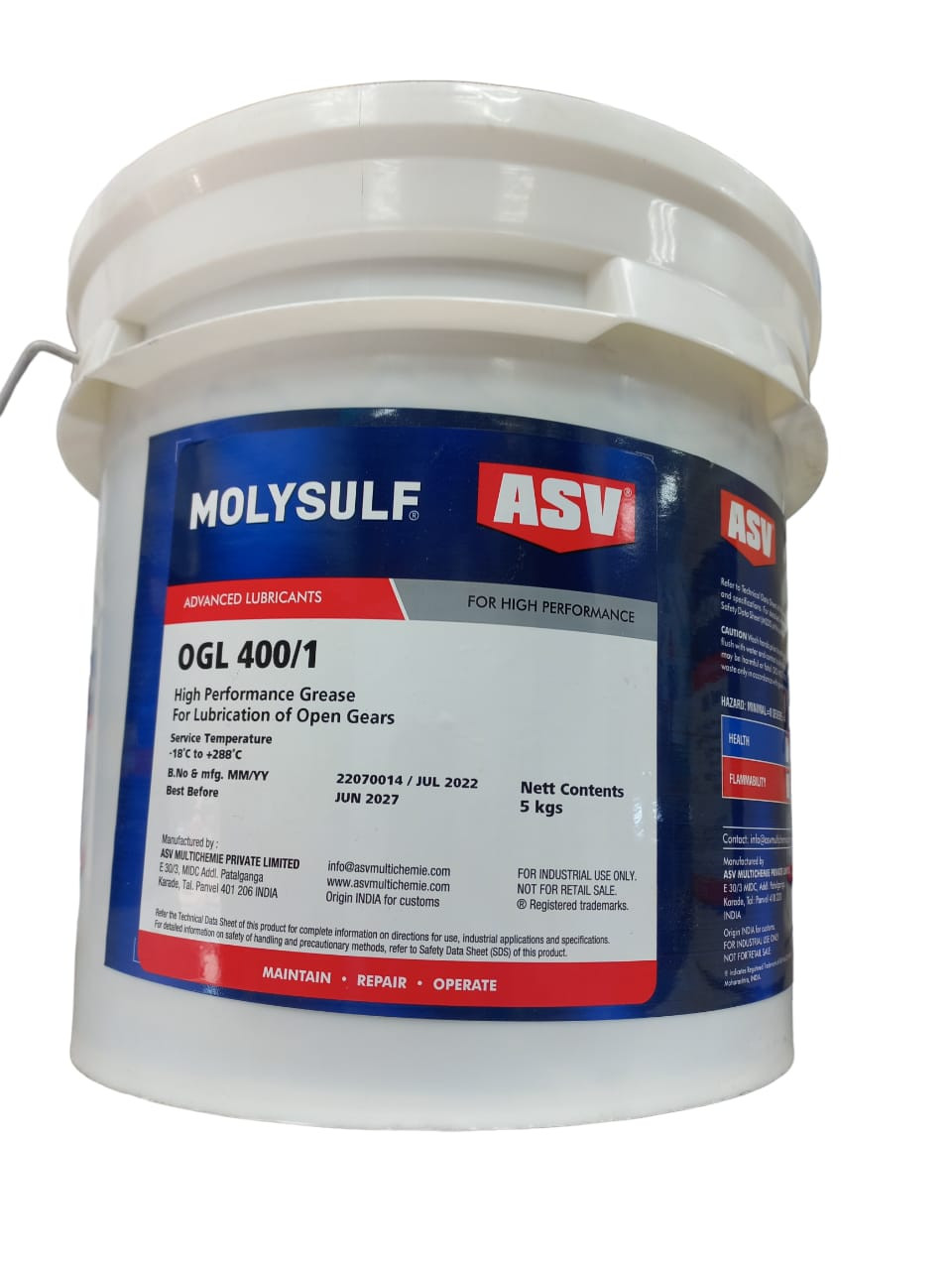

ASV OGL 400 grease series are non-melting, sprayable, adhesive greases designed for lubrication and protection of tooth flanks of large open gears exposed to extremely high loads and temperatures.

ASV OGL 400 grease series are based on highly viscous mineral oils thickened with clay thickener with a high content of ultra-fine graphite and select extreme pressure and anti-wear additives.

ASV OGL 400 grease series ensure excellent resistance to shock loading and prevent danger of damage to tooth flanks by continually maintaining a boundary lubricating film between frictional points of mating surfaces.

ASV OGL 400 grease series cling tenaciously to gear tooth flanks and do not squeeze out under high loads and pressures. ASV OGL 400 grease series are capable of withstanding extreme operating and environmental conditions and protects surface from corrosion    and  can be easily pumped via spray systems on to the gear teeth.

Applications

For spray lubrication of open gears in:

 Heavy engineering industries

 Cement, gypsum and lime manufacturing equipment

 Mining and earth moving equipment

 Wood working equipment

 Sugar mill machinery For lubrication and wear protection of:  Highly stressed large open gears and slew ring gears

 Large chains

 Wire ropes

 Guide rails

Benefits

 Wide service temperature range of -10°C to +180°C

 Thermally stable to +250°C

 Excellent adhesion to metal surfaces

 Forms a non-hardening, adhesive film over gear tooth flanks capable of withstanding high pressures

 Excellent load carrying capacity under severe conditions

 Very good resistance to water and water washout

 Contains additives to prevent against degradation by rust, corrosion and oxidation

 Easily sprayable through spraying systems

 Free of bitumen, chlorine, lead, toxic heavy metals or hazardous solvents

Directions for Use

Use as supplied. Never dilute or mix with oil or grease. Apply on all clean sliding surfaces by normal greasing methods i.e. by brush, grease gun or dispense via centralized lubrication systems. Replace cover after use.
