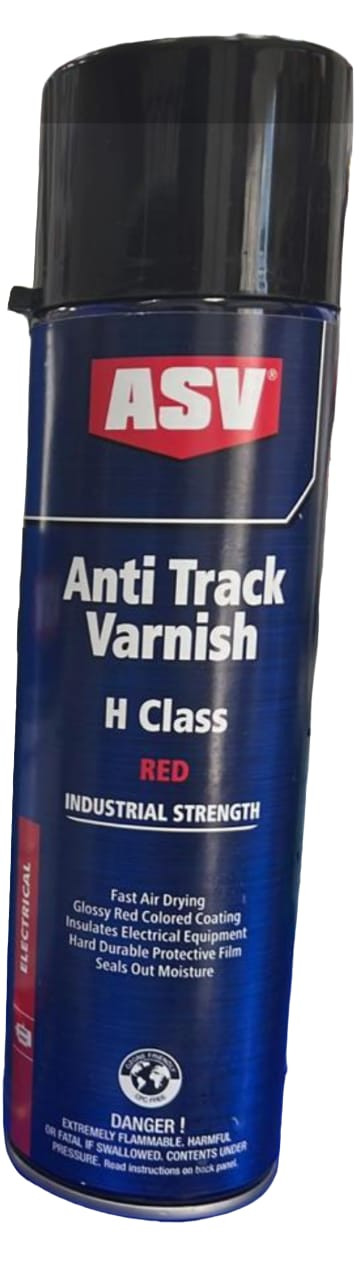

ASV Anti-Track Varnish For Class H 4Ltr

Air Drying Class ‘H’ Anti Track & Insulating Varnish

Product Description

ASV Anti-Track Varnish and protective varnish is a coating with exceptional insulating properties for electrical and electronic equipment to provide surface protection against oils, water, moisture, corrosion, acids, alkalis & temperature variations. Dry to touch in 15 minutes after application, and tack free within 60 minutes, this fast air drying, flexible coating has excellent adhesion to metal windings and coils with a temperature Class H (180°C) rating and high dielectric strength.

ASV Anti-Track Varnish offers complete surface protection by sealing out water and moisture while possessing excellent penetrating and adhesive properties along with resistance to oils.

Applications Use

ASV Anti-Track Varnish protective coating to insulate and seal:

Motor windings  Terminals  Bus bars  Commutator ends  Stator coils  End turns on electrical windings  Printed circuit boards  Ceramic & plastic insulators  Armatures  Rewound motors Generators  Insulator bushes  Transformers Highly suitable for insulating electrical windings that are exposed to extreme moisture and corrosive conditions as well as temperature and voltage fluctuations

Directions for Use

Shake can well before use. Clean thoroughly and dry the surface to be coated before application of this coating. Mask area not to be sprayed. Spray from 12-15 inches away in light, even coats with a sweeping action of the hand. Allow solvents to evaporate completely before re-application. Additional coats for heavy film can be applied when first coat is dry. Coating becomes dry to touch in about 20-30 minutes. Clean the valve by inverting the can and spraying a few short bursts till only the clear propellant comes out. Clean the actuator button orifice by means of a thin, fine wire.
